欧化上料机
    发布时间: 2021-11-09 16:36

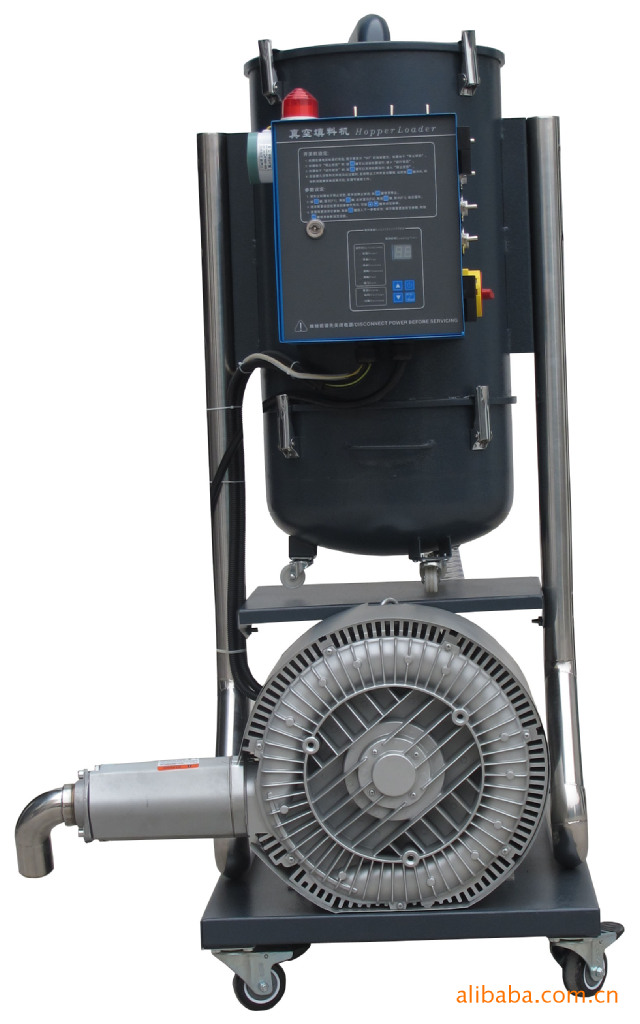

欧化上料机

EURO DESIGN AUTO LOADER

性能特点FEATURES

设备主机釆用高压旋涡风机,体积小安装使用方便分离式过滤设计,便于清理维护。

•电控部分釆用徹电脑控制、按钮操作,控制面板简洁。

•程序可调,内置程序情网功能,延长有效工作时间。

•原料输送量大,可实现一对一快速供料。

•设备自带工作运行/故障检测报警指示。

•The main unit of the equipment adopts high-pressure vortex fan, which is small in size and easy to install. Separate filter design for easy cleaning and mainte nance.

•The electronic control part adopts microcomputer control and button operation, and the control panel is simple.

•The program is adjustable, built-in program love network function, extending the effective working time.

•The raw material is conveyed in a large amount, and one-to-one rapid feeding can be realized.

•The device comes with a working operation/fault detection alarm indication.


型号Model

KSAL-900G1.1

KSAL-900G1.5

KSAL-900G2.2

KSAL-900G3

KSAL-900G4

KSAL-900G5.5

KSAL-900G7.5 I

马达Motor

型式Type

感应式Induction

感应式Induction

感应式Induction

感应式Induction

感应式Induction

感应式Induction

感应式Induction

规格 Specification

1.1KW/1.5HP

1.5KW/2HP

2.2KW/3HP

3KW/4HP

4KW/5HP

5.5KW/7.5HP

7.5KW/10HP

输送能力

Conveying Capacity (kg)

400

500

600

700

800

1000

1300

吸料扬程 Pump Lift(m)

4

4

5

6

6

8

8

静风压

Static Wind Pressure(bar)

0.25

0.26

0.34

0.37

0.38

0.42

0.45

储料桶容量

Storage Tank Volume(kg)

7.5

7.5

7.5

12

30

50

50

送料管内径

Conveying Tube Inner Diameter(mm)

038

038

038

038/051

038/051

j51/|63

$51/(|)63

配送料管

Size of Standard Hpse

038mm X4m 2pcs

4>38((|)51)mmX5m 2pcs

051((|)63)mmX15m lpcs

外形尺寸主机

Dimension(cm) Main Uint

50X40X110

75X55X166

净重 Netweight(kg)

57

57

70

80

85

160

180

产品规格若有变更,恕不另行通知o We reserve the right to change specifications without prior notice.
